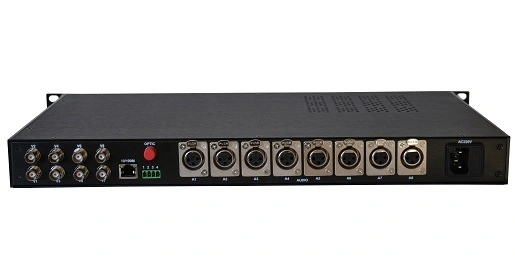

Name:1-8 channel broadcast analog audio fiber optic transmitter and receiver
1. Overview
HC6000 series specially design for broadcast analog audio fiber optic transmission. The quality of video, audio non-compressed transmission with digital designs is much superior . We could supply different audio interface acccording customer's request like RCA, XLR, Terminal Block ports.
2.Features
24-bit quantification, All digital no compression, no damage, point to point or multipoint broadcast analog audio/video fiber optic transmission
All surface mount technology, industrial design, high reliability, average working time more than 100000 hours
Support hot swap with electric
Support lossless signal regenerator
With error correction circuit, and also with the ability of anti-burst interference
Super optical dynamic range, no adjustment when use
FC / PC optical connectors, the longest distance could be up to 100km above, when no regenerator
8-channel forward and 8-channel the reversed broadcast analog audio could be transmitted synchronously over a fiber optic
19 inch 1U.2U standard rack mount
3. Specifications
a) Audio
Input/ output impedance: 600Ωequilibrium
Input/output interface: XLR
Max. input/output level: ＋15 dBu
Frequency Response: 20Hz－20KHz，±0.1dB
SNR: > 85dB（A weighted）
THD+N: < 0.01%@1KHz
Crosstalk: < -90dB
b) Optics
Wavelength: multimode 850nm/1300nm, single-mode 1310nm/1550nm
Connector: FC/PC
Transmit power: ＋3 ～ －15dBm
Receiver sensitivity: -28dBm
c) Other
Average time trouble-free: >100000 hours
Operating temperature: －40℃ ～ +70℃
Humidity: 0～95％ no condensation
Weight: about 3Kg
Dimension: standard 19-inch, 1U rack mount, 482.6mm×44.5mm×230mm
Power: 95~240V/AC，50/60Hz，500mA
4. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
5. Ordering information
a)Unidirectional analog audio fiber optic transmission system
HC-6002 2-channel broadcast analog audio fiber optic transmission system
HC-6004 4-channel broadcast analog audio fiber optic transmission system
HC-6006 6-channel broadcast analog audio fiber optic transmission system
HC-6008 8-channel broadcast analog audio fiber optic transmission system
HC-6016 8-channel broadcast analog audio fiber optic transmission system
b)Bidirectional analog audio fiber optic transmission system
HC-6022 2-channel forward and 2-channel the reversed broadcast analog audio transmission system
HC-6024 4-channel forward and 2-channel the reversed broadcast analog audio transmission system
HC-6044 4-channel forward and 4-channel the reversed broadcast analog audio transmission system
HC-6026 6-channel forward and 2-channel the reversed broadcast analog audio transmission system
HC-6046 6-channel forward and 4-channel the reversed broadcast analog audio transmission system
HC-6066 6-channel forward and 6-channel the reversed broadcast analog audio transmission system
HC-6048 8-channel forward and 4-channel the reversed broadcast analog audio transmission system
HC-6088 8-channel forward and 8-channel the reversed broadcast analog audio transmission system
