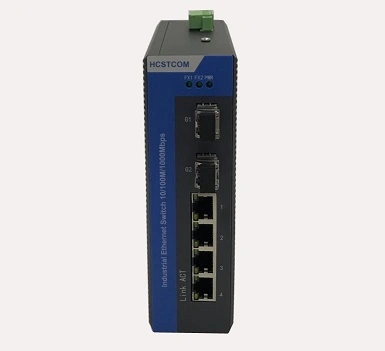

5/6 Port Full Gigabit Unmanaged Industrial Ethernet Switch
-
5/6 Port Full Gigabit Unmanaged Industrial Ethernet Switch
1、Description：
This series is unmanaged Gigabit industrial switch. Supportmax 2x1000M FX and 4x10/100/1000Base-Tx. This unmanaged industrial Ethernet switch is designed to
match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of
harsh environment. The switch complies with CE, FCC and RoHS standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an
economical solution for industrial Ethernet connections.
2、Features：
5/6x10/100/1000Base-Tx ports and Fx ports
Comply with electromagnetic compatibility
requirements with industrial 4 grade
10/100/1000M, half/full duplex, MDI/MDI-X auto- negotiation
Industrial level fanless and low-power design
Variety input voltage for optional
Meets the requirements of harsh environmentwith high reliability
Alarm output of power control
IP40 protection grade,metal shell
DIN Rail/Wall mounting
Wide operating temperature: -40 to +85℃
CE, FCC, RoHS certification
3、Specifications：
Parameter
Standard&Protocol
IEEE 802.3 for 10Base-TX
IEEE 802.3u for 100Base-TX and 100Base-FX
Switch Property
Mac Address
4K
Backplane bandwidth
12Gbps
Switch time delay
<5μs
Interface
Ethernet Port
5/6
Copper port:10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
10/100/1000Base-FX, SFP optical module, LC fiber port
Power Supply Slot
5.08mm spacing terminal block
Relay Alarm Slot
5.08mm spacing terminal block，1A@24VDC
Transmission Distance
Twisted Pair Cable
100m(CAT5/CATe)
Multimode Fiber
850nm, 550 Meter
Single Mode Fiber
1310nm, 20/40KM; 1550nm, 60/80KM
LED Indicator
Front Panel Indicator
Link/ACT, SPEED
System Run LED: RUN
Power Supply: PWR1, PWR2
Power Supply Parameter
Input Power
SupportDC12~48V
AC/DC220V（85-264VAC/110-370VDC）Power Consumption
＜4.8W@full load
Overload Protection
Support
Wrong Wire Protection
Support
Work Environment
Working Temperature
-40℃~85℃
Storage Temperature
-40℃~85℃
Relative humidity
5%~95%（no condensatio）
Physical Characteristic
Housing
IP40 protection, metal
Installation
DIN-Rail mounting
Dimension
(W x H x D)
35mm×125mm×103mm
Industrial Standard
EMC
EN61000-4-2（ESD），Level 4
EN61000-4-3（RS），Level 4
EN61000-4-4（EFT），Level 4
EN61000-4-5（Surge），Level 4
EN61000-4-6（CS），Level 4
EN61000-4-8，Level 5
Shock
IEC60068–2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Warranty
Warranty
5 years
Certification
CE、FCC、RoHS
4、Ordering Information
HC8005G-DC
4X1000M-TX, 1X1000M-FX, DC24V dual power, DIN Rail
HC8006G-DC
4X1000M-TX,2X1000M-FX, DC24V dual power, DIN Rail
