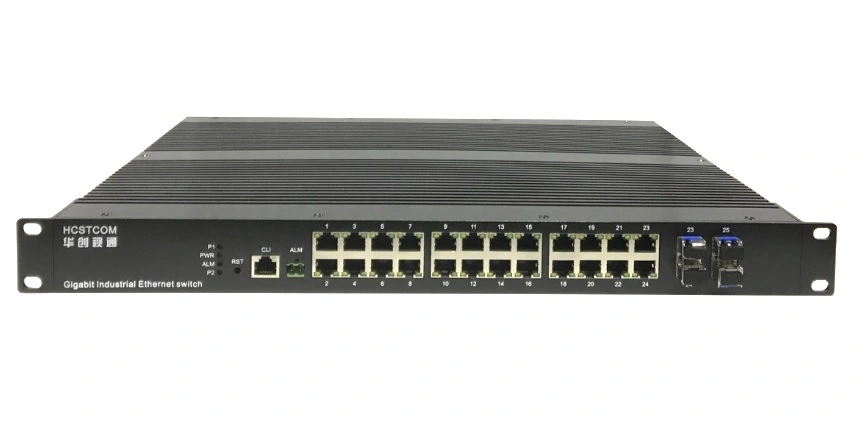

26 Port Full 1000M Layer2 Unmanaged Industrial Ethernet Switch
-
26 Port Full 1000M Layer2 Unmanaged Industrial Ethernet Switch
1、Description:
This is a full 26-port gigabit unmanaged layer2 industrialEthernet switch. Offer max up to 24 Gigabit Tx ports and 4 1000M SFP interfaces. It’s plug and play, adapt wide working temperature -40 to +85℃with relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harshenvironment.
2、Features
Max 24 x 1000M Tx ports and 4 Gigabit Fx ports
Comply with electromagnetic compatibility requirements with industrial 4 grade
10/100/1000M, half/full duplex, MDI/MDI-X auto- negotiation
Industry level fanless and low-power design
Variety input voltage for optional
Meets the requirements of harsh environmentwith high reliability
Alarm output of power control
IP40 protection grade,metal shell
1U standard rack mount
Wide operating temperature: -40 to +85℃
CE, FCC, RoHS certification
3、Specifications
Parameter
Standard&Protocol
IEEE 802.3 for 10Base-TX
IEEE 802.3u for 100Base-TX and 100Base-FX
Switch Property
Mac Address
8K
Backplane bandwidth
28Gbps
Switch time delay
<5μs
Interface
Ethernet Port
Max 26
10/100/1000Base-FX, SFP optical module, LC fiber port
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Power Supply Slot
5.08mm spacing terminal block
Transmission Distance
Twisted Pair Cable
100m(CAT5/CATe)
Multimode Fiber
1310nm, 2KM
Single Mode Fiber
1310nm, 20/40KM; 1550nm, 60/80KM
LED Indicator
Front Panel Indicator
Link/ACT, SPEED
System Run LED: Run
Power Supply: PWR1, PWR2;
Alarm LED: Alarm
Rear Panel Indicator
RJ45：LINK/ACT；SPEED
Fiber：LINK/ACT
Power Supply Parameter
Input Power
AC/DC220V（85-264VAC/110-370VDC）
Power Consumption
＜[email protected] load
Overload Protection
Support
Wrong Wire Protection
Support
Redundant Protection
Support
Work Environment
Working Temperature
-40℃~85℃
Storage Temperature
-40℃~85℃
Relative humidity
5%~95%（no condensation）
Physical Characteristic
Housing
IP40 protection, metal
Installation
1U rack mount
Dimension (W x H x D)
483mm×44mm×280mm
Industrial Standard
EMC
EN61000-4-2（ESD），Level 4
EN61000-4-3（RS），Level 4
EN61000-4-4（EFT），Level 4
EN61000-4-5（Surge），Level 4
EN61000-4-6（CS），Level 4
EN61000-4-8，Level 5
Shock
IEC60068–2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Warranty
Warranty
5 years
Certification
CE、FCC、RoHS
4、Ordering Info
HC8026G-AC
24X1000M-TX, 4X1000M-FX（2 COMBO ports）, 85 to 264VAC power supply, 1U rack mount
