12 Port Layer2 Full Gigabit Industrial Ethernet Switch HCSTCOM
-

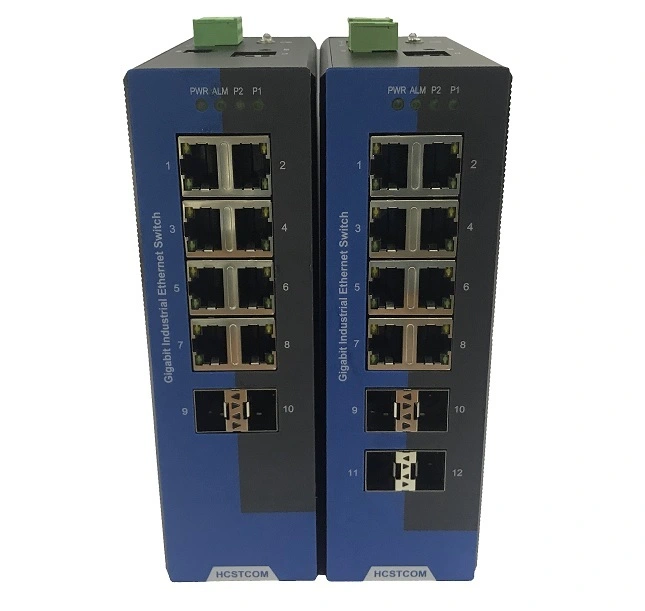

12 Port Layer2 Full Gigabit Industrial Ethernet Switch
1、Description:
This series is layer2 managed full gigabit industrial switch.Support max 4x1000M FX and 8x10/100/1000Base-Tx. This unmanaged industrial Ethernet switch is designed to
match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch passes the 100% burning test to ensure that it will fulfill the needs of industrial applications.
2、Features
Support IPv4/IPv6
Support HC-Ring
Support STP/RSTP/MSTP/ITU-T G.8032 Ethernet Ring Protection
Support IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping
Support IEEE802.1Q VLAN/MAC based VLAN/Protocol based VLAN/IP subnet based VLAN/GVRP/MVR
Support DHCP Server/Client/Relay/snooping
Support Port-based IEEE802.1X/Single and multiple
IEEE802.1X/ MAC-based authentication/VLAN
Assignment/ IP source guard
RADIUS/TACACS+/ACL/SSH v2/HTTPS
Support DNS client/proxy
Support LACP/Link Aggregation Static
Support port mirroring, port speed limited, broadcast storm control
Support WEB management, CLI-Console/Telnet,
SNMP v1/v2/v3 RMON/System Syslog
Green industrial Ethernet design, fanless, low consumption design
Variety power input voltage
Wide working temperature(-40 ~+85 )
Comply with strict electrical environment request.
IP40 protection level, metal housing.
Redundant power input design (for optional)
3、Specifications
Parameter
Standard&Protocol
IEEE 802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad/ 802.1p/802.1q/802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/802.1ab
and etc.IEEE802.3xflow control, backpressure flow control
Switch Property
Priority Queue
8
VLAN Number
4096
Multicast Group
512
Mac Address
8K
Backplane bandwidth
24Gbps
Switch time delay
<5μs
Interface
Ethernet Port
max 12
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 10/100/1000Base-FX, SFP optical module, LC fiber port
Debug Port
RS232 RJ45
Power Supply Slot
5.08mm spacing terminal block
Relay Alarm Slot
5.08mm spacing terminal block 1A@24VDC
Transmission Distance
Twisted Pair Cable
100m(CAT5/CATe)
Multimode Fiber
850nm,500meter
Single Mode Fiber
1310nm, 20/40KM; 1550nm, 60/80KM
LED Indicator
Front Panel Indicator
Link/ACT, SPEED
System Run LED: Run
Power Supply: PWR1, PWR2;
Alarm LED: Alarm
Power Supply Parameter
Input Power
DC12 to 48V, DC12V and 24V option
Power Consumption
＜15W@full load
Overload Protection
Support
Wrong Wire Protection
Support
Redundant Protection
Support
Work Environment
Working Temperature
-40℃~85℃
Storage Temperature
-40℃~85℃
Relative humidity
5%~95%（no condensation）
Physical Characteristic
Housing
IP40 protection, metal
Installation
DIN-Rail mounting
Dimension (W x H x D)
52mm×166mm×115mm
Industrial Standard
EMC
EN61000-4-2（ESD），Level 4
EN61000-4-3（RS），Level 4
EN61000-4-4（EFT），Level 4
EN61000-4-5（Surge），Level 4
EN61000-4-6（CS），Level 4
EN61000-4-8，Level 5
Shock
IEC60068–2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Warranty
Warranty
5 years
Certification
CE、FCC、RoHS
4、Ordering Info
HC8008GM-DC
Managed6X1000M-TX, 2X1000M-FX, DC24V dual power, DIN Rail
HC8010GM-DC
Managed8X1000M-TX, 2X1000M-FX, DC24V dual power, DIN Rail
HC8012GM-DC
Managed8X1000M-TX, 4X1000M-FX, DC24V dual power, DIN Rail
