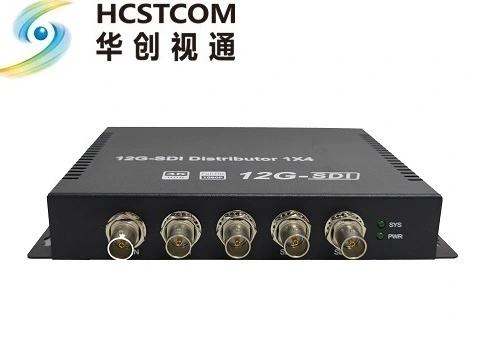

12G-SDI Distributor Amplifier 1*4
-
1. Product introduction:
The HC104-4K-SDI splitter developed and produced by HCST is a 12G-SDI signal 1 to 4 splitter developed in accordance with the requirements of broadcast-level indicators; it optimizes and amplifies your video, and the advanced technology solves the video jitter problem.This product is suitable for applications in the audio and video industry, video conferencing, and indoor and outdoor studios in the radio and television industry.
2. Product features:
Support 12G-SDI signal, 1 input and 4 output;
Support 12G/6G/3G/HD/SD-SDI video with embedded audio;
Automatic detection of input signals, no need to install any driver settings;
Provide better video effects and reduce video jitter issues;
LED indication signal lock, power input;
Support single desktop use, easy to install;
Support 4U card dual power supply chassis, 16 inputs and 64 outputs;
3. Technical parameters:
input/output
Input: 1 x BNC
Output: 4 x BNC
Video format3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PALVideo processing
SD/HD/3G/6G/12G-SDI
Video bandwidth
11.88Gpbs & 11.88/1.001Gbps
AudioSupport SDI embedded audio
Power supply12V DC Jack
size150 x 120 x 28 mm
Weight
0.5 kg
Operating temperature0~50 °C
