4K30 HDMI KVM Fiber Optic Extender With Loop Out & USB 2.0

1.Overview

 The 4K HDMI KVM fiber optic extender developed and produced by Beijing HCSTCOM CO. Ltd, supports single-mode optical fiber transmission distance of 10-80 kilometers. The product adopts point-to-point connection, supports 1 channel 4K HDMI high-definition video, 1 channel bidirectional 3.5mm audio, 1 channel RS232 bidirectional data, 1 channel reverse boot up, 1 channel reverse IR control, 1 channel USB 2.0 KVM function. It can realize remote control and management through USB mouse and keyboard. This device is mainly used in research and development of security systems, command centers, video conferencing systems, computer room KVM and remote conferences, etc.

2.Main Features

Support transmitter 1 channel HDMI input, 1 channel HDMI loop out; receiver 2 channels HDMI output

1 channel forward 3.5mm analog audio, 1 channel reverse MIC audio transmission;

Support 1 channel RS232 data bi-directional transmission;

Support 1-way reverse boot up function (optional);

Support 1 channel reverse IR control function;

Support USB2.0 mouse and keyboard for remote control and management;

Support USB2.0 U disk and printer signal transmission;

Support HDMI 1.4 standard, compatible with HDMI 1.3A, DVI1.0;

4K30 4:4:4 image lossless transmission, compatible with 4K30, 1080P and 1920*1200 resolutions;

Single-mode optical fiber transmission 10-80KM, multi-mode 0-550M;

Support 4U card chassis and desktop optional;

Support free switching between two transmission modes: network cable or fiber optic cable; (CAT6 network cable transmission 120-140 meters)

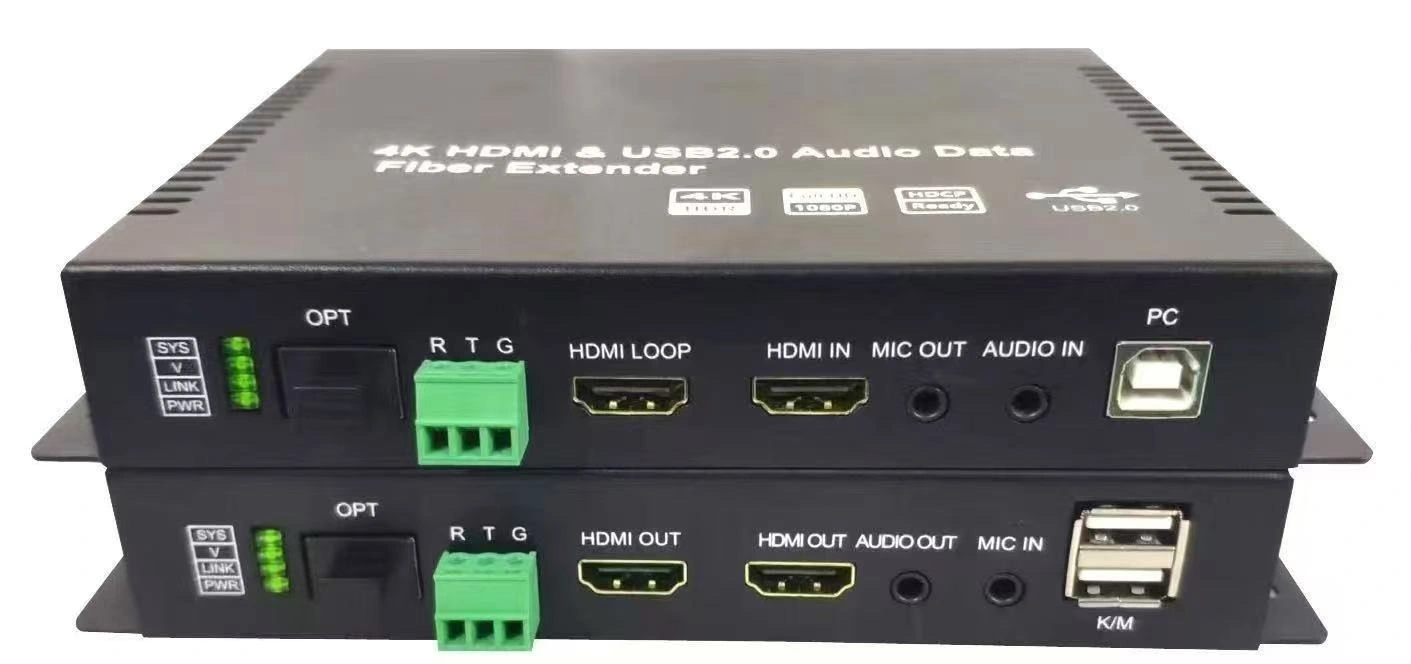

3.Product image

4.Technical Parameters
