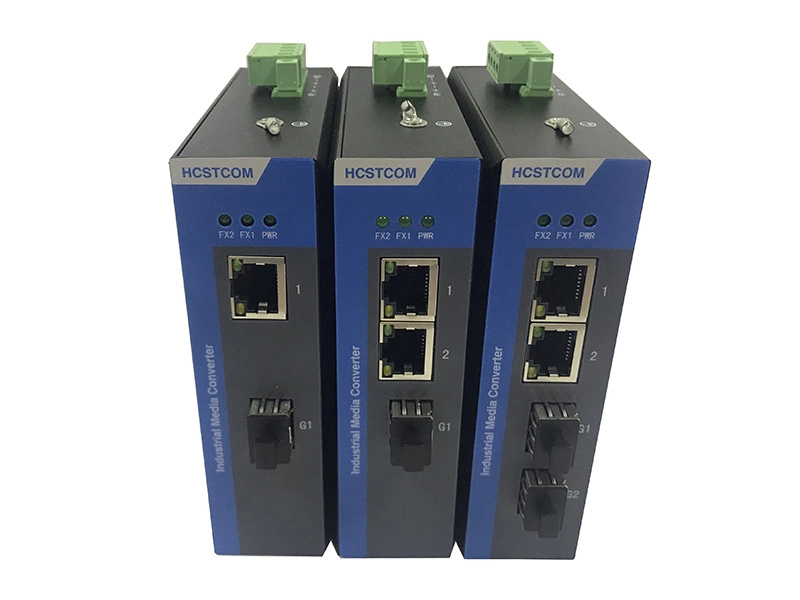

2/3Port Full Gigabit Industrial Media Converter
This series is unmanaged Gigabit industrial switch. Support max 2x1000M FX and 2x10/100/1000Base-Tx. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE, FCC and RoHS standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Features
◎ 2/3x10/100/1000Base-Tx ports and Fx ports
◎ Comply with electromagnetic compatibility
◎ Requirements with industrial 4 grade
◎ 10/100/1000M, half/full duplex, MDI/MDI-X auto-negotiation
◎ Industrial level fanless and low-power design
◎ Variety input voltage for optional
◎ Meets the requirements of harsh environment with high reliability
◎ Alarm output of power control
◎ IP40 protection grade,metal shell
◎ DIN Rail/Wall mounting
◎ Wide operating temperature: -40 to +85℃
◎ CE, FCC, RoHS certification
|
Parameter |
|
|
Standard&Protocol |
IEEE 802.3 for 10Base-TX |
|
Switch Property |
|
|
Mac Address |
4K |
|
Backplane bandwidth |
12Gbps |
|
Switch time delay |
<5μs |
|
Interface |
|
|
Ethernet Port |
2/3/4 |
|
Copper port:10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning |
|
|
10/100/1000Base-FX, SFP optical module, LC fiber port |
|
|
Power Supply Slot |
5.08mm spacing terminal block |
|
Relay Alarm Slot |
5.08mm spacing terminal block，1A@24VDC |
|
Transmission Distance |
|
|
Twisted Pair Cable |
100m(CAT5/CATe) |
|
Multimode Fiber |
1310nm, 2KM |
|
Single Mode Fiber |
1310nm, 20/40KM; 1550nm, 60/80KM |
|
LED Indicator Front Panel Indicator: Link/ACT, SPEED, Lx: System Run LED: RUN; Power Supply: PWR1, PWR2 |
|
|
Power Supply Parameter |
|
|
Input Power |
DC12 to 36V, DC48V option |
|
Power Consumption |
＜3.7W@full load |
|
Overload Protection |
Support |
|
Wrong Wire Protection |
Support |
|
Work Environment |
|
|
Working Temperature |
-40℃~85℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Relative humidity |
5%~95%（no condensation） |
|
Physical Characteristic |
|
|
Housing |
IP40 protection, metal |
|
Installation |
DIN-Rail mounting |
|
Dimension |
35mm×125mm×103mm |
|
Industrial Standard |
|
|
EMC |
EN61000-4-2（ESD），Level 4 |
|
Shock |
IEC60068–2-27 |
|
Free Fall |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty |
5 years |
|
Certification |
|
|
CE、FCC、RoHS |
|
|
Ordering Information |
|
|
HC8002G-DC |
1X1000M-TX, 1X1000M-FX, DC24V dual power, DIN Rail |
|
HC8003G-DC |
2X1000M-TX, 1X1000M-FX, DC24V dual power, DIN Rail |
|
HC8004G-DC |
2X1000M-TX, 2X1000M-FX, DC24V dual power, DIN Rail |
