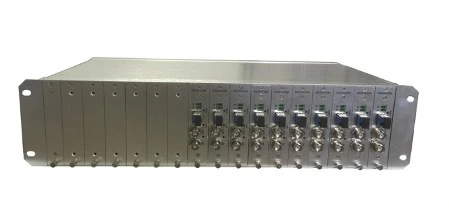

16-Slot Rack Mount 12G-SDI Transceiver HCSTCOM
-
1. Description
2.5U 16-Slot Rack Mount SDI Transceiver is a centralized power supply conversion center used in the equipment room. It adopts centralized main and standby power supplies and can switch randomly. It is equipped with 16 module plugs, enabling multiple modules to work simultaneously, support hot plug,plug and play.
2. Function Features
•The configuration of main and standby power supplies ensures the stability of the system
•AC220V power supply, suitable for a variety of working environment
•16 slots, can be directly inserted into the subrack, convenient for users to choose
•Multiple modules can work at the same time, and each module supports hot plug function
•power supply, stable and long life, with a built-in fan
•Standard subrack, can be installed in the equipment room rack, easy to unified management and maintenance
•A maximum of 16 modules can be inserted into the rack at the same time. Each module can be of different models
3. Performance Indicators
Name
16-slot Rack Mount SDI Transceiver
Installable Ttype
3G-SDI Transceiver, 3G-SDI Bidirectional Transceiver
12G-SDI Transceiver, 12G-SDI Bidirectional Transceiver
Power Dissipation
＜95W
BTBF
Compliant with telecom class standards, average more than 80,000 hours
Environmental Specification
Operating Temperature: -0℃ ～ +50℃
Storage Temperature: -30℃ ～ +75℃
Relative Humidity: 0～95% (no condensatio)
Power Supply
Input operating voltage: 100～ 240V AC
Output operating coltage: 12VSize
482.6mm(L) ×280mm(W) ×108.5mm(H) Standard 19 inch 2.5U subrack
Weight
About 8kg
