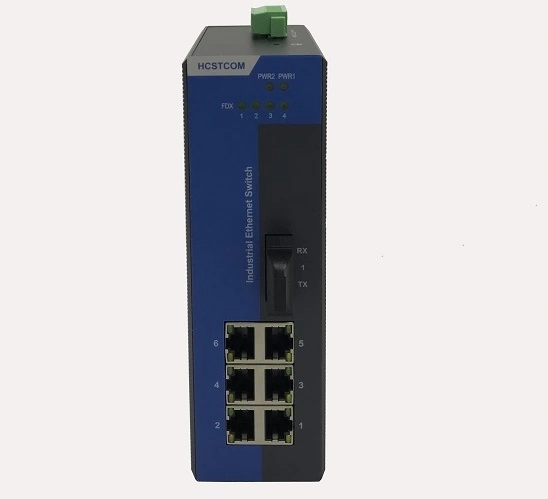

3/5/6 Port 100M Unmanaged Industrial Ethernet Switch
-
3/5/6 Port 100M Unmanaged Industrial Ethernet Switch
1、Description：
This series is a max 6-port 100M unmanaged layer2 industrial Ethernet switch, offer max up to 6 ports, which can be configured flexibly. It’s plug and play, adapt wide working
temperature -40 to +85℃ with relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment
2、Features：
3/5/6x10/100Base-Tx ports, 2x100Base-Fx ports
Comply with electromagnetic compatibility requirements with industrial 4 grade 10/100M, half/full duplex, MDI/MDI-X auto- negotiation
Green industry series without fan and low-power design
Variety input voltage for optional
Meet the requirements of harsh environment with high reliability
Alarm output of power control
IP40 protection grade,metal shell
DIN rail/wall mounting
Wide operating temperature: -40 to +85℃
CE, FCC, RoHS certification
3、Specifications：
Parameter
Standard&Protocol
IEEE 802.3 for 10Base-TX
IEEE 802.3u for 100Base-TX and 100Base-FX
Switch Property
Mac Address
1K
Backplane bandwidth
12Gbps
Switch time delay
<5μs
Interface
Ethernet Port
4/5/6
Copper port:10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 10/100Base-FX, 1X9 pin optical module, SC or FC
Power Supply Slot
5.08mm spacing terminal block
Relay Alarm Slot
5.08mm spacing terminal block，1A@24VDC
Transmission Distance
Twisted Pair Cable
100m(CAT5/CATe)
Multimode Fiber
1310nm, 2KM
Single Mode Fiber
1310nm, 20/40KM; 1550nm, 60/80KM
LED Indicator
Front Panel Indicator
LINK/ACT；SPEED；Lx
System Run LED: RUN
Power Supply: PWR1, PWR2
Power Supply Parameter
Input Power
DC24V
Power Consumption
＜5W@full load
Overload Protection
Support
Redundant Protection
Support
Work Environment
Working Temperature
-40℃~85℃
Storage Temperature
-40℃~85℃
Relative humidity
5%~95%（no condensation）
Physical Characteristic
Housing
IP40 protection, metal
Installation
DIN-Rail mounting
Dimension (W x H x D)
144mm*33mm*97mm (W×H×D)
Industrial Standard
EMC
EN61000-4-2（ESD），Level 4
EN61000-4-3（RS），Level 4
EN61000-4-4（EFT），Level 4
EN61000-4-5（Surge），Level 4
EN61000-4-6（CS），Level 4
EN61000-4-8，Level 5
Shock
IEC60068–2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Warranty
Warranty
5 years
Certification
CE、FCC、RoHS
4、Ordering Information
HC8003M-DC
2X100M-TX, 1X100M-FX, DC24V dual power, DIN Rail
HC8005M-DC
4X100M-TX, 1X100M-FX, DC24V dual power, DIN Rail
HC8006M-DC
4X100M-TX, 2X100M-FX, DC24V dual power, DIN Rail
