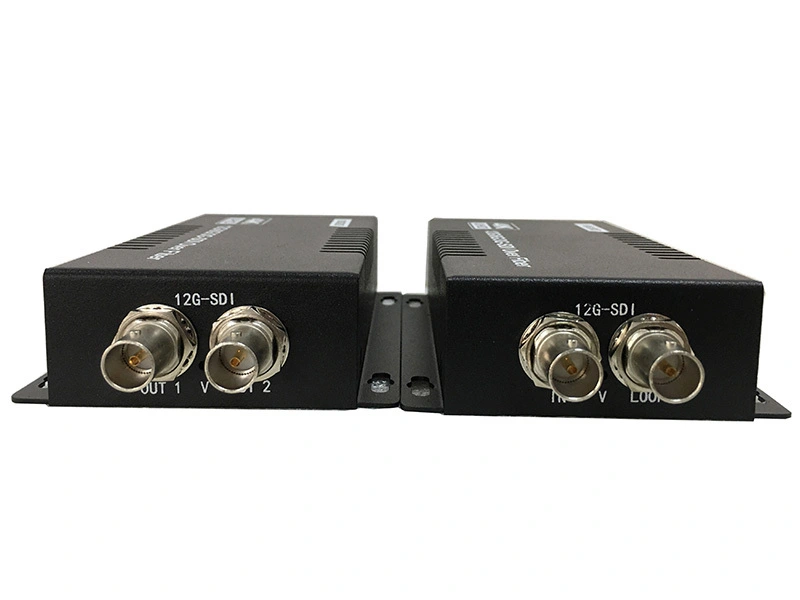

1-ch 12G-SDI Fiber extender with Loop Out
12G-SDI fiber optic extender could transmit 4K@60Hz resolution of 12G-SDI signal with 11.88Gb bandwidth over single core fiber cable. it is compatible with 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS stream(auto switching) and SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082
Features
◎ 1-ch 12G-SDI over single core fiber cable. Save fiber cable sources.
◎ 1 SFP slot
◎ Support 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS stream(auto switching)
◎ SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082
◎ Could support rack mount
|
12G-SDI/ASI Input |
12G-SDI/ASI Output |
||
|
Channels |
1 input with loop |
Channels |
2 |
|
Signal standard |
SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S, 2081,2082,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -11.88Gb/s) |
Signal level |
800mV nominal |
|
Reflection loss |
>15DB |
Rise/fall time |
34.2ps nominal |
|
Equalization |
1694Acable,>50m@11880Mbps,Belden |
Reflection loss |
> 15dB |
|
Connector |
75Ω BNC |
Overshoot |
10% amplitude |
|
Jitter: < 0.5UI |
|||
|
Optic |
Others |
||
|
Channels |
1 |
Transmission distance |
10KM |
|
Type |
single mode (multimode optional) |
Operating temperature |
-45°C~+50°C |
|
Wavelength |
1310nm /1550nm or CWDM/DWDM |
Power |
1A@12VDC |
|
Reflection loss |
> 15dB |
Average time trouble-free |
>100000 hours |
|
Connector |
LC/PC |
Case |
120X62X28mm |
Application
◎ Remote OB Van/Truck Video Feeds
◎ Broadcast Studio Camera Feeds
◎ Long-haul Signal Transport
◎ TV station/video conference
◎ Lecture Hall Projector Connectivity
◎ Medical/Surgical Room Broadcast
◎ Building to Building video conference calling
◎ Small corporate campus video links
