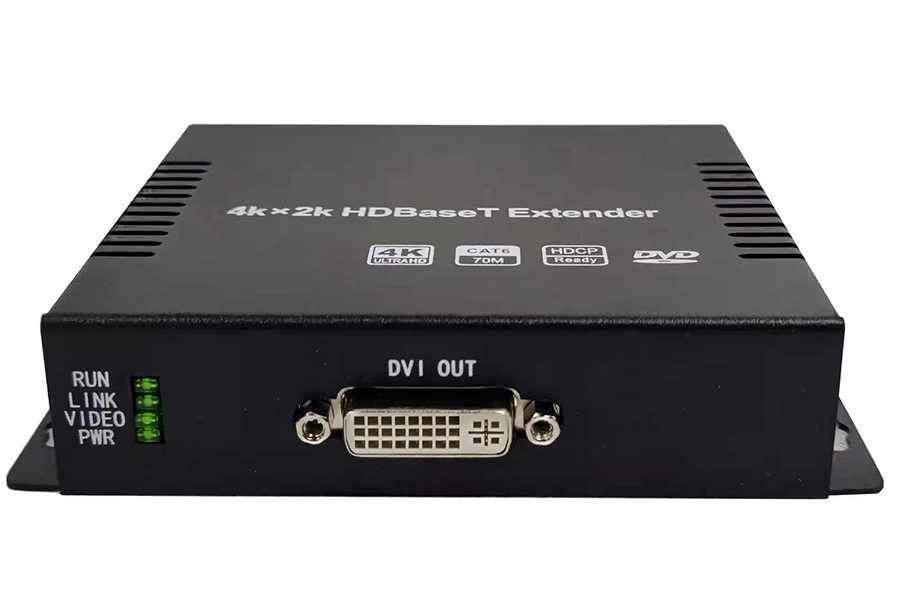

4Kx2K HDBaseT DVI extender with HDMI loop
HDBaseT DVI extender with HDMI output,HDBaseT DVI Cable extender
HDBaseT DVI extender, support the transmitter HDMI loop, support bidirectional infrared control signal transmission; Support bidirectional RS-232 signal transmission; Support 1920×1200 resolution transmission，70M, 100 M, 150M optional;
HDBaseT DVI extender with HDMI output, can convert DVI signal to standard HDBaseT signal and then extend DVI signal to 150 meters through Cat6. This product supports bidirectional infrared control signal and RS-232 transmission signal. And the transmitter side with HDMI output function, through the two-way infrared interface can easily control the signal source device or display device from the remote end. Supports a maximum resolution of 1920 x 1200. This product can be widely used in video conference system,
multimedia signal broadcast, large screen display and many other fields.
Features
◎ Support DVI 1.0, HDMI 1.4B and HDCP 1.4;
◎ HDBaseT special technology, support direct connection with projector and other display equipment;
◎ Video resolution up to 1920×1200, compatible with 1920*1080P60;
◎ Transmission distance through CAT6 network cable up to 150 meters;
◎ Support bidirectional infrared control signal transmission;
◎ Support bidirectional RS-232 signal transmission;
◎ Supports 1 channel HDMI video loop.
|
Specifications |
|
|
Specification |
DVI 1.0, HDMI 1.4B |
|
Video bandwidth |
165MHz |
|
Video resolution |
Up to 1,920 ×1200, 1,366 ×768, 1,280 ×720, |
|
Color space |
RGB, YUV4:4:4, YUV 4:2:2 |
|
Color depth |
8-bit |
|
HDMI audio format |
LPCM2/5.1/7.1 CH, Dolby * Digital and DTS 5.1, Dolby *Digital, |
|
The connection |
|
|
The emitter |
Input: 1 x DVI |
|
The receiver |
Input: 1×HDBaseT In[RJ45] |
|
The fuselage |
|
|
The shell |
Metal case |
|
color |
black |
|
size |
100mm(length)×100mm(width)×25mm(thickness) |
|
The weight of the |
350 g |
|
Power supply |
Input: AC100-240V 50/60Hz |
|
The power consumption |
5W |
|
Operating temperature |
0 ~ 50 ° C |
|
Storage temperature |
- 20 ° ~ 60 ° C |
