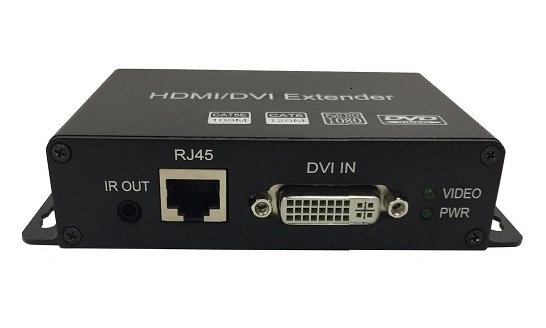

DVI Extender over Cat5/Cat6 （3U Card Insertion Chassis）

1、Description

DVI/HDMI Extender over cat5/cat6 extends HDMI/DVI signals to remote places. It could extend HDMI video signal up to 120 meter with normal 8 core cat5e/6/7 cable with 1080p resolution. High bandwidth, no loss, no delay, plays real time HD video at remote places. Widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc

2、Features

Uncompressed production solution

Support HDMI1.3; DVI 1.0

Compatible with HDCP 1.2

IEEE-568B standard

Resolution:1080p/720p/576p//480p/@24/50/60fps

Max 120meter with cat5 and cat6 cable

CEC pass through

Transmitter: 1 HDMI input, 1RJ45 out

Receiver: 1HDMI output, 1RJ45 in

Optional 3U card insertion chassis

3、Specification

Items	Specification
Voltage/Current	DC12V/1A
Power consumption	TX:＜3W RX:＜3W
HDMI compliance	HDMI1.3
HDCP compliance	HDMI1.2
HDMI input resolution supported	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,
HDMI output resolution supported	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,
Audio formats supported	L/R stereo audio
Maximum transfer rate	4.5Gbps
Input and output TMDS signal	0.5～1.5Vp-p(TMDS)
Input and output DDC signal	5Vp-p(TTL)
Transmission length	120m
Input cable length supported	≤8m(AWG24)
Output cable length supported	≤8m(AWG24)
IR remote control	Supports IR passback with 20~60KHz frequancy
Transfer method	Over UTP/STP CAT5/5e/6
Connector	RJ45
Electrostatic protection of the whole machine	1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2
Working temperature	0～50℃
Storage temperature	-10～70℃
Humidity (no condensation)	0～90%
Dimension	100(L) x80(W) x 281(H)mm
Material	Iron alloy material + crystal panel
Finishing	Grit blast
Color	Black
Weight	TX:150g, RX:150g
Mean time between failures (MTBF)	>30000 Hours

4、Applications:

Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank, Digital FPDs and projectors in conference room and auditorium, Kiosk with digital FPDs showing full motion graphic displays from remote systems, PDP displays for information in public sites, LED signboards in streets and in stadiums
