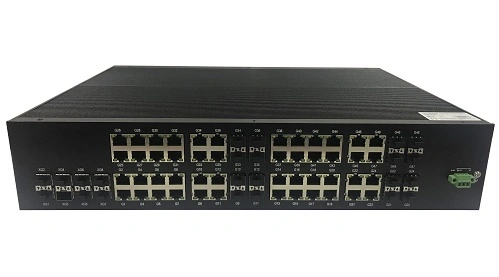

52/56 Port Layer3 10G Routing Industrial Ethernet Switch
1、Description
This is layer3 10G layer3 routing managed industrialEthernet switch specially designed for industrial application with harsh environment, support RIPv1/v2,OSPFv2 and static routing, offer max 4X10G FX+48 1000M TX ports, support HC-Ring protocol, self healing time≤15ms, adapt
fanless design, -40 to +85 wide working temperature, variety power supply for option.
2、Features
Support 4X 10G FX+48X1000M TX
Support RIP v1/v2, OSFP v2, static routing
Support HC-Ring,STP, RSTP, VRRP, IEC 62439-6/3, Self healing time≤15ms
Support IGMP, IGMP Snooping, PIM-SM,
PIM- DM and static multicast
Support 802.1VLAN, QoS, 802.1x, SSH, SSL, TACACS+, RADIUS, ACL
Support port trunking, port speed limit, broadcast storm control,
multicast storm control, unicast storm control
Support CLI, Telnet, WEB, SNMP v1/2/3, RMON, LLDP, DHCP,
Support SNTP
Variety input voltage for optional
Support port mirroring,VCT
Support WEB interface config and command line config
Redundant dual inputs design
Comply with electro magnetic compatibility requirements with industrial 4grade
Wide operating temperature:-40 to +85
Offer alarm output of IP conflict, MAC conflict, power, temperature, ring
Support upload and download of FTP/TFTP configand syslog
3、Specifications
Parameter
Standard&Protocol
IEEE 802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad/ 802.1p/802.1q/802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/802.1ab
and etc.IEEE802.3xflow control, backpressure，flow control
Switch Property
Priority Queue
8
VLAN Number
4096
Multicast Group
1K
Mac Address
16K
Backplane bandwidth
176Gbps
Routing
16K
Switch time delay
<5μs
Interface
10G Port
4X10G SFP
10G Base-FX
Gigabit Port
Max 48
10/100/1000Base-FX, SFP optical module, LC fiber port，single mode/Multimode，
Gigabit RJ45 electric port
Debug Port
RS232，RJ45
Power Supply Slot
5.08mm spacing terminal block
Relay Alarm Slot
5.08mm spacing terminal block，1A@24VDC
Transmission Distance
Twisted Pair Cable
100m(CAT5/CATe)
Multimode Fiber
850nm,500meter
Single Mode Fiber
1310nm, 20/40KM; 1550nm, 60/80KM
LED Indicator
Front Panel Indicator
Link/ACT, SPEED
System Run LED: Run
Power Supply: PWR1, PWR2;
Alarm LED: Alarm
Rear Panel Indicator
RJ45：LINK/ACT；SPEED
Fiber：LINK/ACT
Power Supply Parameter
Input Power
AC/DC220V（85-264VAC/110-370VDC）
Power Consumption
＜30W@full load
Overload Protection
Support
Wrong Wire Protection
Support
Redundant Protection
Support
Work Environment
Working Temperature
-40℃~85℃
Storage Temperature
-40℃~85℃
Relative humidity
5%~95%（no condensation）
Physical Characteristic
Housing
IP40 protection, metal
Installation
2U rack mount
Dimension (W x H x D)
483mm×88mm×315mm
Industrial Standard
EMC
EN61000-4-2（ESD），Level 4
EN61000-4-3（RS），Level 4
EN61000-4-4（EFT），Level 4
EN61000-4-5（Surge），Level 4
EN61000-4-6（CS），Level 4
EN61000-4-8，Level 5
Shock
IEC60068–2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Warranty
Warranty
5 years
Certification
CE、FCC、RoHS
4、Ordering Info
HC8052G-AC
Layer3 routing 4X10G FX+48X1000M-TX, 85 to 264VAC power supply, 2U rack mount
HC8056G-AC
Layer3 routing8X10G FX+32X1000M-TX,16X1000M-FX 85 to 264VAC power supply, 2U rack mount
