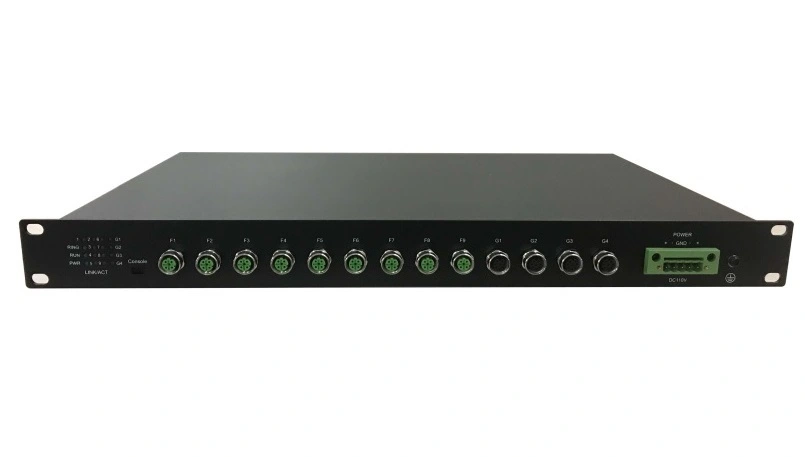

12 Port M12 Layer2 Managed Industrial Ethernet Switch HCSTCOM
-
12 Port M12 Layer2 Managed Industrial Ethernet Switch
1、Description:
This is En50155 standard layer2+ managed 4+8 fastEthernet M12 Industrial Ethernet switch complying with the stability requirement of rail transit and independent intellectual property rights of the HC-Ring Ethernet to realize the redundancy backup. This series widely be used in special requirements of vibration, shock, dust proof and waterproof, electromagnetic interference and other factors detailed targeted in the design in traffic, railway, mining and other industries, to ensure the stable operation of the network.
2、Features
Support 4X1000M TX+8X100M TX
Comply with EN50155 railway industry standard,specifically designed for the application of
rail transportation
Support IPv4/IPv6, HC-Ring
Support STP/RSTP/MSTP/ITU-T G.8032 Ethernet Ring Protection
Support IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping
Support IEEE802.1Q VLAN/MAC based VLAN/Protocol based VLAN/IP subnet based VLAN/GVRP/MVR
Support DHCP Server/Client/Relay/snooping
Support Port-based IEEE802.1X/Single and multiple IEEE802.1X/ MAC-based authentication/VLAN Assignment/ IP source guard
RADIUS/TACACS+/ACL/SSH v2/HTTPS
Support DNS client/proxy
Support LACP/Link Aggregation Static
Support port mirroring, port speed limited, broadcast storm control
Support WEB management, CLI-Console/Telnet,
SNMP v1/v2/v3 RMON/System Syslog
Green industrial Ethernet design, fanless, low consumption design
Variety power input voltage
Wide working temperature(-40to +85 )
Comply with strict electrical environment request.
IP40 protection level, metal housing.
Redundant power input design (for optional)
3、Specifications
Parameter
Standard&Protocol
IEEE 802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad/ 802.1p/802.1q/802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/802.1ab
and etc.IEEE802.3xflow control, backpressure，flow control
Switch Property
Priority Queue
8
VLAN Number
4096
Multicast Group
512K
Mac Address
16K
Backplane bandwidth
28Gbps
Switch time delay
<5μs
Interface
Gigabit Port
Max 4
Copper port: 10/100/1000Base-T(X), M12, Automatic Flow Control,
Full/half Duplex Mode, MDI/MDI-X Autotunning
100M Port
Max9
Copper port: 10/100Base-T(X), M12, Automatic Flow Control
Full/half Duplex Mode, MDI/MDI-X Autotunning
Debug Port
RS232，RJ45
Power Supply Slot
M12
Transmission Distance
Twisted Pair Cable
100m(CAT5/CATe)
LED Indicator
Rear Panel Indicator
LINK/ACT；SPEED
Power Supply: PWR
Power Supply Parameter
Input Power
DC110(DC40 to 160V), AC220V(85-264VAC/110-370VAC)
Power Consumption
＜15W@full load
Overload Protection
Support
Wrong Wire Protection
Support
Work Environment
Working Temperature
-40℃~85℃
Storage Temperature
-40℃~85℃
Relative humidity
5%~95%（no condensation）
Physical Characteristic
Housing
IP40 protection, metal
Installation
1U rack mount
Dimension (W x H x D)
483mm×44mm×260mm
Industrial Standard
EMC
EN61000-4-2（ESD），Level 4
EN61000-4-3（RS），Level 4
EN61000-4-4（EFT），Level 4
EN61000-4-5（Surge），Level 4
EN61000-4-6（CS），Level 4
EN61000-4-8，Level 5
Shock
IEC60068–2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Warranty
Warranty
5 years
Certification
CE、FCC、RoHS
4、 Ordering Info
HC8012M
Layer2 managed 4X1000M-Tx(M12), 8X100M-Tx(M12), DC110V , 1U rack mount, En50155 standard
