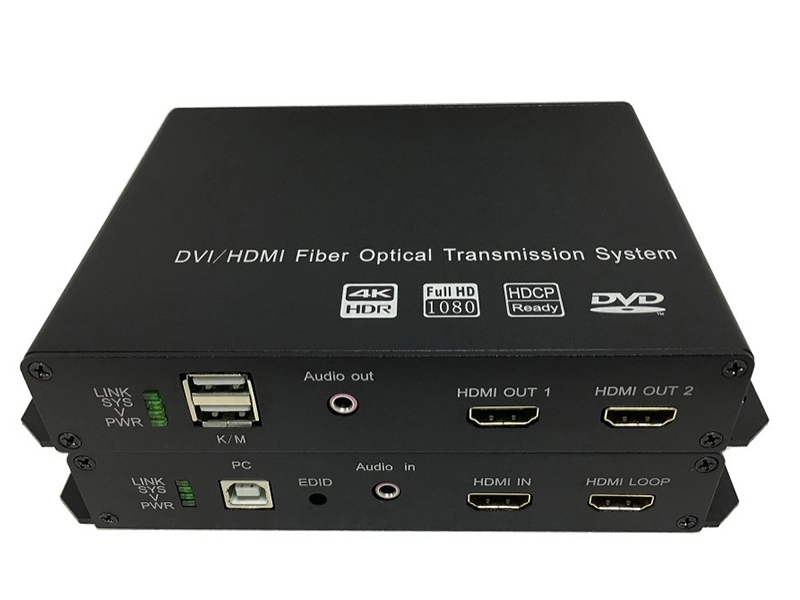

4K HDMI KVM Fiber Extender with Loop+Audio
KVM(Mouse & Keyboard) / Data optional
4K HDMI optical terminal, 4-way HDMI optical terminal, 8-way HDMI optical terminal, 16-way HDMI optical terminal Optional audio RS232 data or USB keyboard and mouse.
The 4K HDMI KVM fiber extender with loop and audio,researchied and developed by Beijing HCSTCOM Co.Ltd. , can be through 1 core fiber long-distance transmission, standard HDMI signal, audio, RS232 data & keyboard and mouse, infrared and other business signals. Its design focuses on reliability and excellent resolution image performance, using all-digital, non-compression technology for perfect frame-loss, delay-free transparent transmission of HDMI video images up to 3840X2160@30Hz or 1080p@60Hz (HDTV) resolution. The product has LED signal indicator to show the status of power, video and light signal. 4K HDMI optical terminal is widely used in military command and control, public security command and control, traffic police traffic management, energy and power supply industry, government departments, medical system, commercial display, multimedia function hall, public utilities and many other fields.
Features
◎ 1 channel 4K HDMI, transmitting belt ring out; Receiver 2-channel HDMI output.
◎ 1 channel stereo audio, support audio embedded and embedded functions.
◎ Support control data RS232 optional
◎ USB mouse and keyboard are optional
◎ CWDM fiber multiplexing technology without compression
◎ Single core fiber up to 60KM, standard 10KM
Adopting independent research and development real-time direct transmission technology
◎ Support HDMI V1.4
◎ Supports resolution 1920x1080/60p, up to 3840* 2160/30p
◎ Bandwidth of each channel is 10.2 Gbps
Compatible with HDCP 1.2
◎ Support 3D TV transparent transmission
◎ Support EDID transparent transmission, can automatically identify and configure various display modes
◎ Support LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio
◎ Plug and play
◎ Built-in signal balancing regeneration chip, clear output signal jitter, signal quality is more perfect.
◎ Low RF interference/electromagnetic interference, suitable for sensitive electromagnetic environment applications
Performance Indicators
Maximum pixel clock 340 MHz
Total bandwidth 10.2 Gbps
Support resolution 1920x1080/60p, 3840* 2160/30p, backward compatibility
Supports digital audio 7.1 channel LPCM, 192 kHz, 24-bit
Input/output: level 2 vP-P
Total harmonic distortion: ≤1%
Bandwidth (-3 dB) : 20~20KHz
Audio encoding: 24bit
Input/output impedance: 600 ω or 100K ω
Weighted SNR: ≥85 dB
Connector: 3.5mm jack
Physical port: 3-pin Phoenix terminal
Data format :RS-232
Data direction: Forward/bidirectional
Transmission rate :300~25600bps
Operating mode :RS-232 full duplex/half duplex
Operating temperature -40°to +50°C
Storage temperature -60° C to +85°C
Operating humidity 5% to 80% (non-condensing)
Storage humidity 5% to 95% (non-condensing)
Input: 100-240VAC / 50-60Hz 0.2A
Output: 12VDC, 1.0A 5.5/2.1mm Jack
Power: 3 W
Mechanical structure: 176X123X29mm
Weight: 1 kg
Order Info
|
4K HDMI KVM Fiber Extender with Loop+Audio |
|
|
HC3510A-4K-T/R |
Transmitter 1-ch HDMI input, 1-ch HDMI loop out, 1-ch USB for PC; Receiver 2-ch HDMI output, 2-ch USB for K&B; |
|
HC3000 |
Standard 3U rack mount, support 15 HDMI cards |
