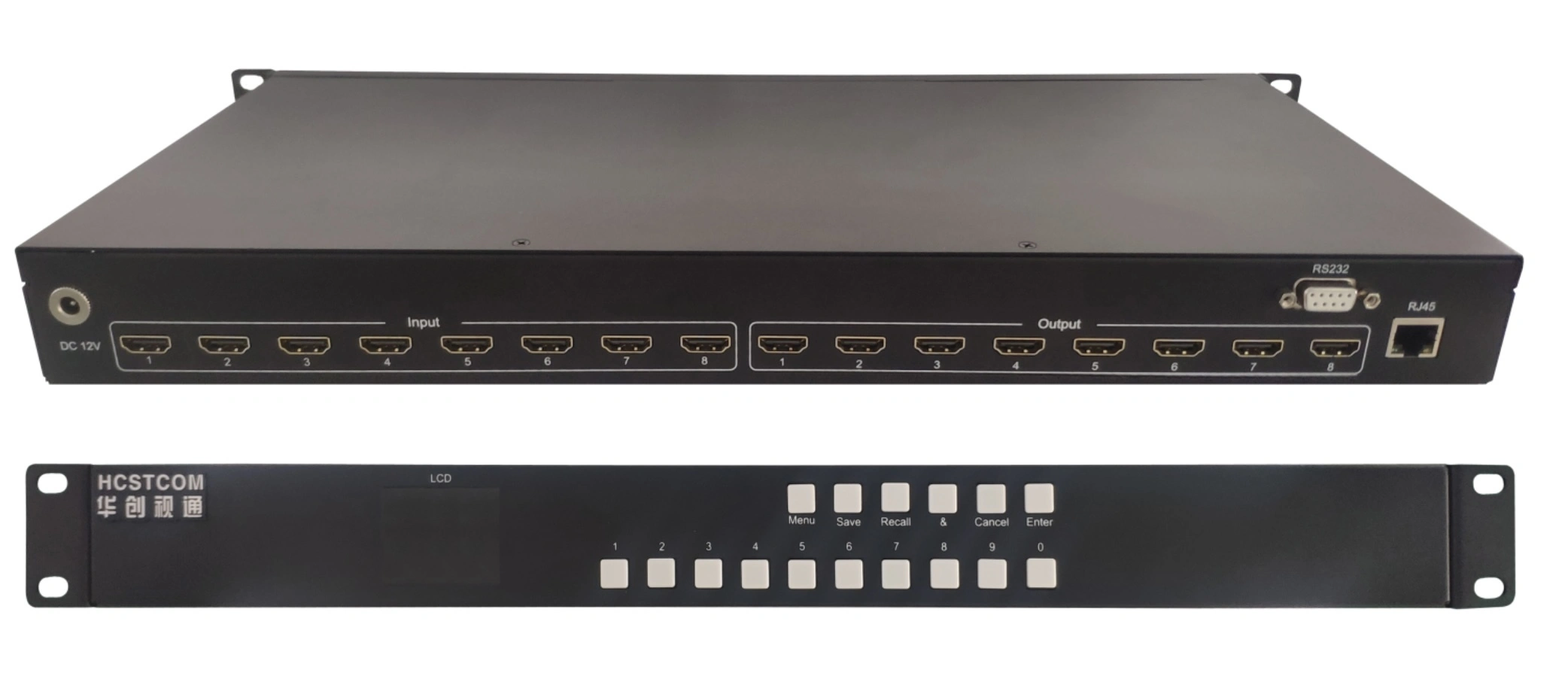

HDMI2.0 8*8 matrix switcher（4K60 4：4:4）

1、Product Introduction

The HDMI2.0 8*8 matrix switcher, researched and developed by Beijing HCSTCOM Co.,Ltd, Support 8 channels 4K60 HDMI video signal input, 8 channels 4K60 HDMI video signal, can be any input video signal, switch to any output interface; The product is widely used in large screen projection display engineering, large screen splicing, audio-visual teaching, command and control center, multimedia conference room and other occasions

2、Main Features

1.Using high-performance processor, faster running speed, more stable system;

2.The use of large-scale high-resolution chip, with long-term drive function;
3. The use of high-speed digital exchange technology, perfect solution to crosstalk, double shadow and tailing phenomenon. 100% true reproduction of the input signal video effect;
4. Built-in can expand 32 scene control storage mode;
5. Input and output interfaces are electrostatic protection circuit, performance more stable;
6. Full SMD process, unique ESD electrostatic protection function;
7. Fault tolerance technology is adopted in the design, and communication interface circuit with high anti-interference ability is adopted to ensure the reliability of communication. It has manual control and RS232 control functions, and users can conveniently complete the signal switching during the demonstration process;
8. This product with power off site switching memory protection, LCD display and other functions, with RS232 communication interface, can be easily used with computers or various central control system equipment;
9. High quality, mass production, high compatibility and stability, high cost performance.

3、Technical Parameters

video
Interface bandwidth :18GHz (-3Db) full load
Maximum support resolution …………………………… 4K@60HZ
Bit clock jitter :…………………………………… <0.15 Tbit
Max clock frequency ………………………………… <165MHZ
Input/output clock phase difference …………………………… <100PS

Video input

Interface ………………………………………… HDMI 2.0 port
Min/Max level ……………… T.M.D.S 150<1200MV< font>
1920x1200@60HZ, the recommended maximum input distance is less than 35 m
4K@60HZ, the recommended maximum input distance is less than 15 m

Video output

Min/Max :…………… T.M.D.S 150<1200MV< font>
The recommended maximum output distance is less than 35 m at 1900x1200@60
The recommended maximum output distance is less than 15 meters at 4K@60
(Certified HDMI cable is recommended)

Control mode:

1. Front panel buttons
2. RS-232 serial port
3. Network control (optional)

Baud rate and protocol:

Serial control interface: RS-232, 9-pin D type public interface
Baud rate: 115200
Data bits: 8 bits,
Stop bit: 1,
Check bit: No pair
Serial control interface structure: 2=TX, 3=RX, 5=GND

4、Technical specifications:

Power source: DC12V,2A
Power rate :16W
Temperature :-30~+80°C
Humidity :10%~90%
Size :480(W)*45 (H)* 260* Depth (mm)
Weight :4KG
Outer shell: metal material
Rack mounting: Standard 1U
Vibration: ISTA 1A (International Safe Shipping Association)
Compliance standard: CE/FCC Class A
Mean time between failures: 100,000 hours
