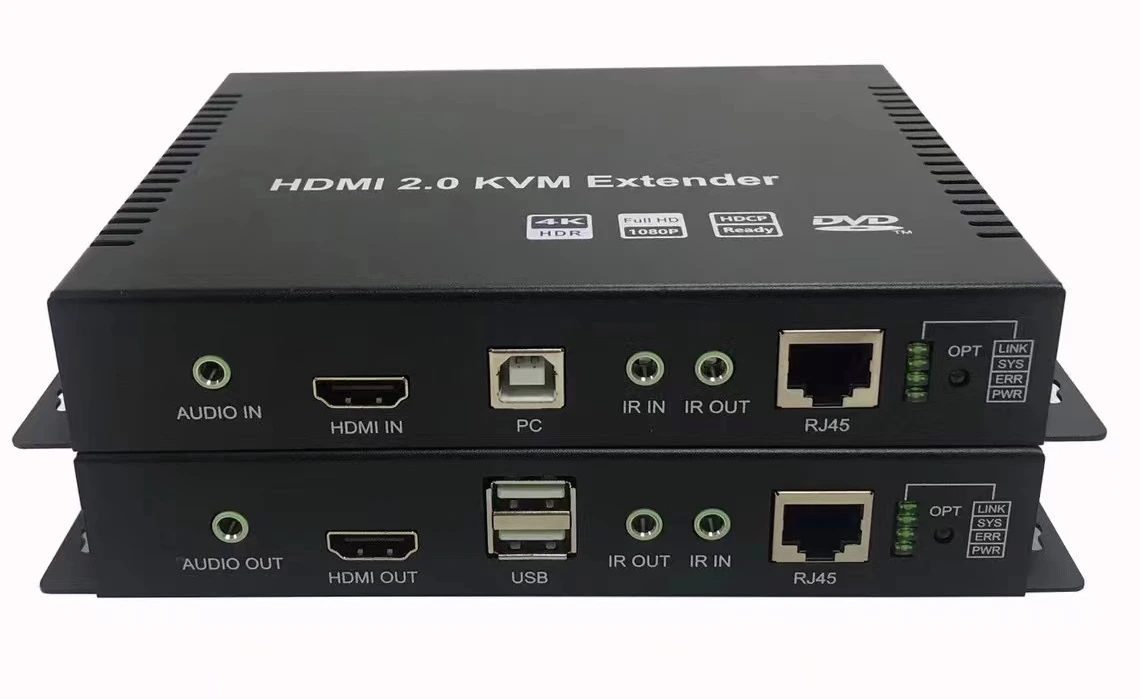

HDMI2.0 KVM Extender Over Cat6（4K60 4:4:4）
1、Description
HDMI Extender over cat6(cat6A/7) extends HDMI signals to remote places. It could extend HDMI video signal up to 100 meterunder 3840*2160 60hz resolution. High bandwidth, no loss, no delay, plays real time HD video at remote places. Widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc
2、Features
Uncompressed production solution
Support HDMI2.0, compatible with HDMI V1.4 and 1.3A
Support 3840*2160 60Hz , compatible with1920*1200 60hz, 1920x1080 60Hz etc.
Support HDCP2.2, compatible with HDCP 1.4
Support bidirectional infrared transmission
Support USB mouse,keyboard for remote control
Support bidirectional RS232 transmission(optional)
Support 4U rack mount for insert card
3、Applications
Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank, Digital FPDs and projectors in conference room and auditorium, Kiosk with digital FPDs showing full motion graphic displays from remote systems, PDP displays for information in public sites, LED signboards in streets and in stadiums
4、Specification
|
Items |
Specification |
|
Tansmitter |
1*HDMI in, 1*RJ45,1*PC,1*IR in,1*IR out,1*3.5mm audio in (RS232 optional) |
|
Receiver |
1*HDMI out, 1*RJ45,2*USB,1*IR in,1*IR out,1*3.5mm audio out (RS232 optional) |
|
HDMI compliance |
HDMI 2.0, compatible with HDMI 1.4 |
|
HDCP compliance |
HDCP 2.2, compatible with HDCP 1.4 |
|
Transmission Medium |
CAT6/CAT6A/CAT7 |
|
Transmission Distance |
≤100m |
|
Video Bandwidth |
18 Gbps |
|
Video resolution supported |
1280x960,1280x800,1280x768,1680x1050,1360x768,1366x768,1600x900,1024x768,800x600,1920*1080 60Hz，3840*2160 60Hz |
|
Audio formats supported |
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH |
|
HDR10(YUV4:4:4) |
Support |
|
EDID Unvarnished Transmission |
Support |
|
KVM Function |
USB 1.1@ Mouse and Keyboard |
|
Input DDC signal |
0.7-1.2Vp-p |
|
Input TMDS signal |
5Vp-p |
|
Power Supply |
TX and RX both have external power adapter |
|
Voltage/Current |
DC12V/1A |
|
Power Consumption |
5W |
|
Working temperature |
-20℃～60℃ |
|
Storage temperature |
-10～70℃ |
|
Humidity (no condensation) |
0～90% |
|
Dimension |
150(L) x120(W) x 28(H)mm |
