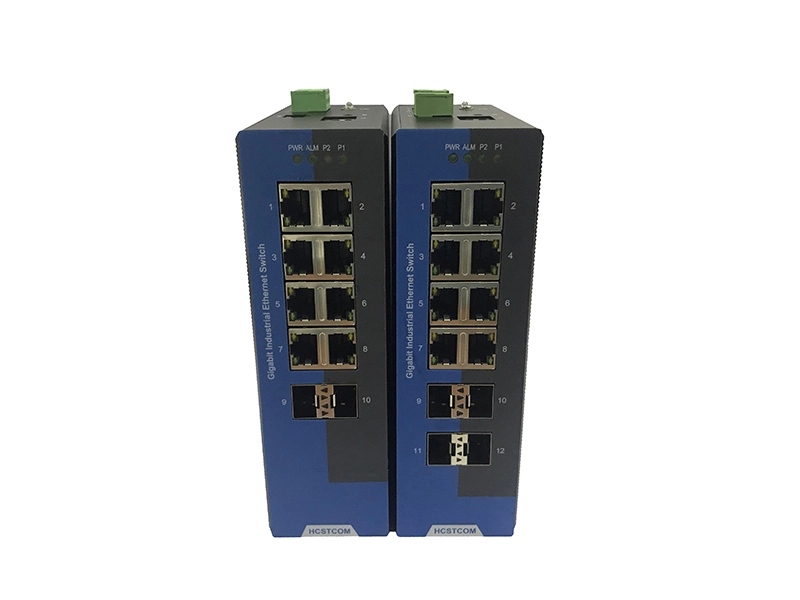

12 Port Layer2 Full Gigabit Industrial Ethernet Switch
This series is layer2 managed full gigabit industrial switch. Support max 4x1000M FX and 8x10/100/1000Base-Tx. This unmanaged industrial Ethernet switch is designed to
match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch passes the 100% burning test to ensure that it will fulfill the needs of industrial applications.
◎ Green industrial Ethernet design, fanless, low consumption design
◎ Variety power input voltage
◎ Wide working temperature(-40 ~+85 )
◎ Comply with strict electrical environment request.
◎ IP40 protection level, metal housing.
◎ Redundant power input design (for optional)
Features
◎ Support IPv4/IPv6
◎ Support HC-Ring
◎ Support STP/RSTP/MSTP/ITU-T G.8032 Ethernet Ring Protection
◎ Support IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping
◎ Support IEEE802.1Q VLAN/MAC based VLAN/Protocol based VLAN/IP subnet based VLAN/GVRP/MVR
◎ Support DHCP Server/Client/Relay/snooping
◎ Support Port-based IEEE802.1X/Single and multiple
◎ IEEE802.1X/ MAC-based authentication/VLAN
◎ Assignment/ IP source guard
◎ RADIUS/TACACS+/ACL/SSH v2/HTTPS
◎ Support DNS client/proxy
◎ Support LACP/Link Aggregation Static
◎ Support port mirroring, port speed limited, broadcast storm control
◎ Support WEB management, CLI-Console/Telnet,
◎ SNMP v1/v2/v3 RMON/System Syslog
|
Parameter |
|
|
Standard&Protocol |
IEEE 802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad/ 802.1p/802.1q/802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/802.1ab |
|
Switch Property |
|
|
Priority Queue |
8 |
|
VLAN Number |
4096 |
|
Multicast Group |
512 |
|
Mac Address |
8K |
|
Backplane bandwidth |
24Gbps |
|
Switch time delay |
<5μs |
|
Interface |
|
|
Ethernet Port |
max 12 |
|
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning |
|
|
Fiber port: 10/100/1000Base-FX, SFP optical module, LC fiber port |
|
|
Debug Port |
RS232 RJ45 |
|
Power Supply Slot |
5.08mm spacing terminal block |
|
Relay Alarm Slot |
5.08mm spacing terminal block 1A@24VDC |
|
Transmission Distance |
|
|
Twisted Pair Cable |
100m(CAT5/CATe) |
|
Multimode Fiber |
850nm,500meter |
|
Single Mode Fiber |
1310nm, 20/40KM; 1550nm, 60/80KM |
|
LED Indicator |
|
|
Front Panel Indicator |
Link/ACT, SPEED |
|
System Run LED: Run |
|
|
Power Supply: PWR1, PWR2; |
|
|
Alarm LED: Alarm |
|
|
Power Supply Parameter |
|
|
Input Power |
DC12 to 48V, DC12V and 24V option |
|
Power Consumption |
＜15W@full load |
|
Overload Protection |
Support |
|
Wrong Wire Protection |
Support |
|
Redundant Protection |
Support |
|
Work Environment |
|
|
Working Temperature |
-40℃~85℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Relative humidity |
5%~95%（no condensation） |
|
Physical Characteristic |
|
|
Housing |
IP40 protection, metal |
|
Installation |
DIN-Rail mounting |
|
Dimension (W x H x D) |
52mm×166mm×115mm |
|
Industrial Standard |
|
|
EMC |
EN61000-4-2（ESD），Level 4 |
|
Shock |
IEC60068–2-27 |
|
Free Fall |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Warranty |
|
|
Warranty |
5 years |
|
Certification |
|
|
CE、FCC、RoHS |
|
|
Ordering Info |
|
|
HC8008GM-DC |
Managed6X1000M-TX, 2X1000M-FX, DC24V dual power, DIN Rail |
|
HC8010GM-DC |
Managed8X1000M-TX, 2X1000M-FX, DC24V dual power, DIN Rail |
|
HC8012GM-DC |
Managed8X1000M-TX, 4X1000M-FX, DC24V dual power, DIN Rail |
