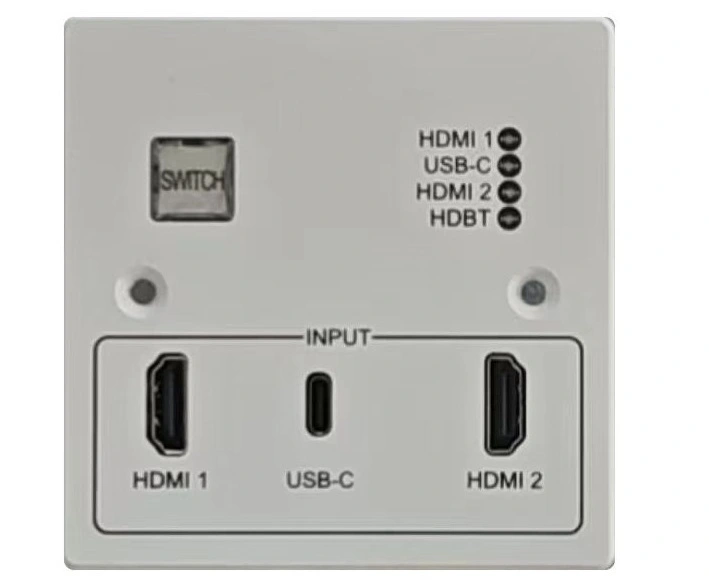

86Panel 2*HDMI+USB-C wall-plug transmitter

1. Product Introduction

86Panel 2-ch HDMI+USB-C wall-plug transmitter, developed and produced by Beijing HCSTCOM Co. Ltd, adopts a hybrid input design and integrates the latest HDBaseT technology. It converts 2ch HDMI and 1ch USB-C video signals into standard HDBaseT signals output. It supports Power over Cable (PoC), enabling it to draw power from a matrix or other HDBaseT devices.It’s equipped with a DC12V power interface for independent power supply and supports RS232 control. It can transmit HDMI and USB-C signals with resolutions of 4K Ultra HD, 1920×1080 at 60Hz, and 3D over distances of up to 70 meters or 100 meters.

This product is extensively applied in various scenarios such as video conferencing, large - screen display and multimedia display control systems, high - end image display projects, medical imaging display and projection systems. It is well-suited for long-distance video and information transmission systems in airports, railway stations, sports centers, hotels, and more.

2. Product Features

-Supports 2ch HDMI and 1ch USB-C video signals transmission over 70/100m;

-Integrates the latest HDBaseT technology;

-HDMI supports 4K UHD (3840×2160),1080P@60Hz (1920×1080),3D, and a color depth of 36 bits;

-Support 4K signal 40m,1080P@60Hz signal 70/100m;

-Can be used with hybrid matrix or other HDBaseT devices;

-Supports bidirectional RS232 data transmission;

-Support PoC power supply, no need an external power source;

-Signal switching via panel buttons or host computer software;

-Standard 86x86mm panel wall-plug design, can match with floor box and table box;

-LED indicators to display the switching status.

3. Technical Parameters
