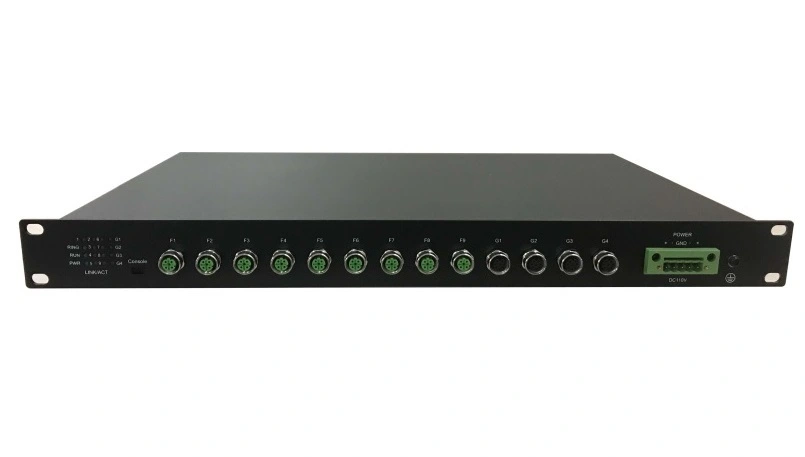

12 Port M12 Layer3 Managed Industrial Ethernet Switch
1、Description:
This is En50155 standard layer3 routing M12 IndustrialEthernet switch complying with the stability requirement of rail transit and independent intellectual property rights of the HC-Ring Ethernet to realize the redundancy backup. This series widely be used in special requirements of vibration, shock, dust proof and waterproof, electromagnetic interference and other factors detailed targeted in the design in traffic, railway, mining and other industries, to ensure the stable operation of the network.
2、Features
Support 4X1000M TX+8X100M TX
Comply with EN50155 railway industry standard,specifically designed for the application of rail transportation
Support RIP v1/v2, OSFP v2, static routing
Support HC-Ring,STP, RSTP, VRRP, IEC 62439-6/3, Self healing time≤15ms
Support IGMP, IGMP Snooping, PIM-SM, PIM- DM and static multicast
Support 802.1VLAN, QoS, 802.1x, SSH, SSL, TACACS+, RADIUS, ACL
Support port trunking, port speed limit, broadcast storm control, multicast storm control, unicast storm
control
Support CLI, Telnet, WEB, SNMP v1/2/3, RMON, LLDP, DHCP
Support SNTP
Variety input voltage for optional
Support port mirroring,VCT
Support WEB interface config and command line config Redundant dual inputs design
Comply with electro magnetic compatibility
requirements with industrial 4grade
Wide operating temperature:-40 to +85
Offer alarm output of IP conflict, MAC conflict, power, temperature, ring
Support upload and download of FTP/TFTP configand syslog
3、Specifications
Parameter
Standard&Protocol
IEEE 802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad/ 802.1p/802.1q/802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/802.1ab
and etc.IEEE802.3xflow control, backpressure，flow control
Switch Property
Priority Queue
8
VLAN Number
4096
Multicast Group
512K
Mac Address
16K
Backplane bandwidth
28Gbps
Switch time delay
<5μs
Interface
Gigabit Port
Max 4
Copper port: 10/100/1000Base-T(X), M12, Automatic Flow Control,
Full/half Duplex Mode, MDI/MDI-X Autotunning
100M Port
Max8
Copper port: 10/100Base-T(X), M12, Automatic Flow Control
Full/half Duplex Mode, MDI/MDI-X Autotunning
Debug Port
RS232，RJ45
Power Supply Slot
M12
Transmission Distance
Twisted Pair Cable
100m(CAT5/CATe)
LED Indicator
Rear Panel Indicator
LINK/ACT；SPEED
Power Supply: PWR
Power Supply Parameter
Input Power
DC110(DC40 to 160V), AC220V(85-264VAC/110-370VAC)
Power Consumption
＜15W@full load
Overload Protection
Support
Wrong Wire Protection
Support
Work Environment
Working Temperature
-40℃~85℃
Storage Temperature
-40℃~85℃
Relative humidity
5%~95%（no condensation）
Physical Characteristic
Housing
IP40 protection, metal
Installation
1U rack mount
Dimension (W x H x D)
483mm×44mm×260mm
Industrial Standard
EMC
EN61000-4-2（ESD），Level 4
EN61000-4-3（RS），Level 4
EN61000-4-4（EFT），Level 4
EN61000-4-5（Surge），Level 4
EN61000-4-6（CS），Level 4
EN61000-4-8，Level 5
Shock
IEC60068–2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Warranty
Warranty
5 years
Certification
CE、FCC、RoHS
4、 Ordering Info
HC8012R-EN
Layer3 routing 4X1000M-Tx(M12), 8X100M-Tx(M12), DC110V , 1U rack mount, En50155 standard
